Custom 5-Axis CNC Machining Service for 7075-T6 Aluminum Complex Geometry Aerospace-Grade Parts

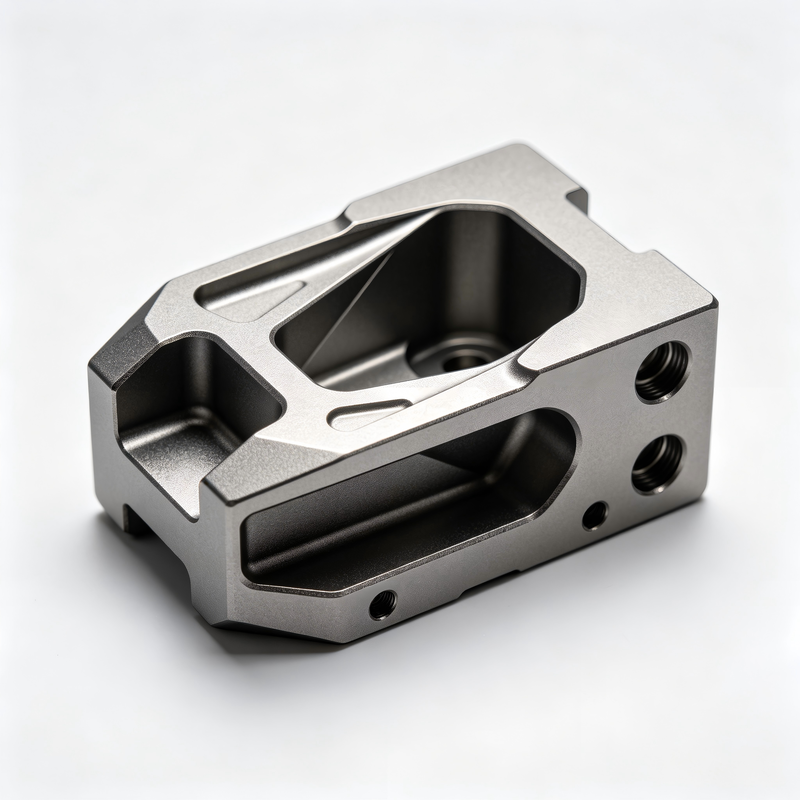

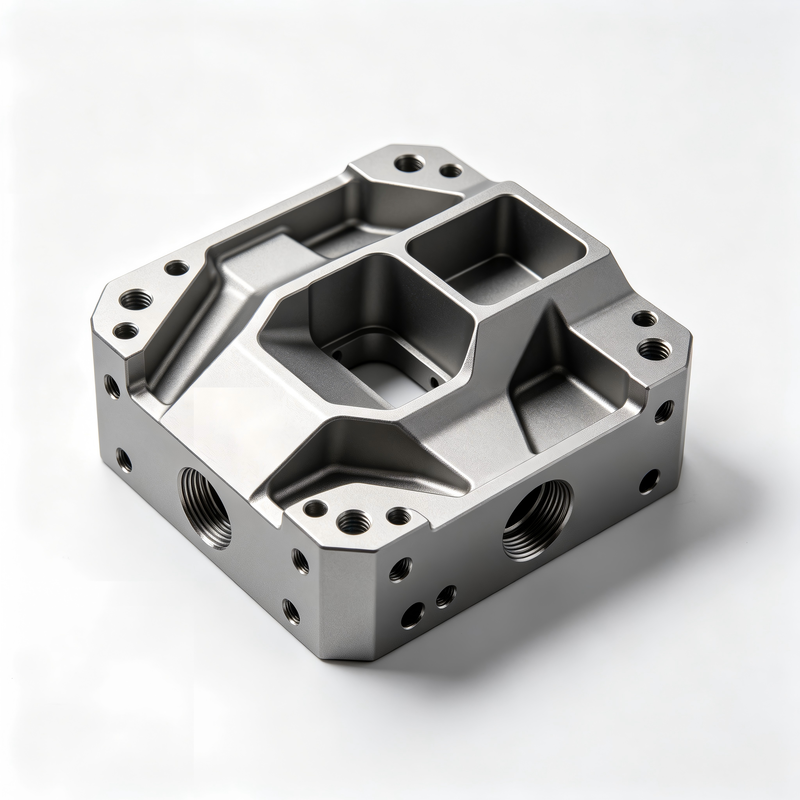

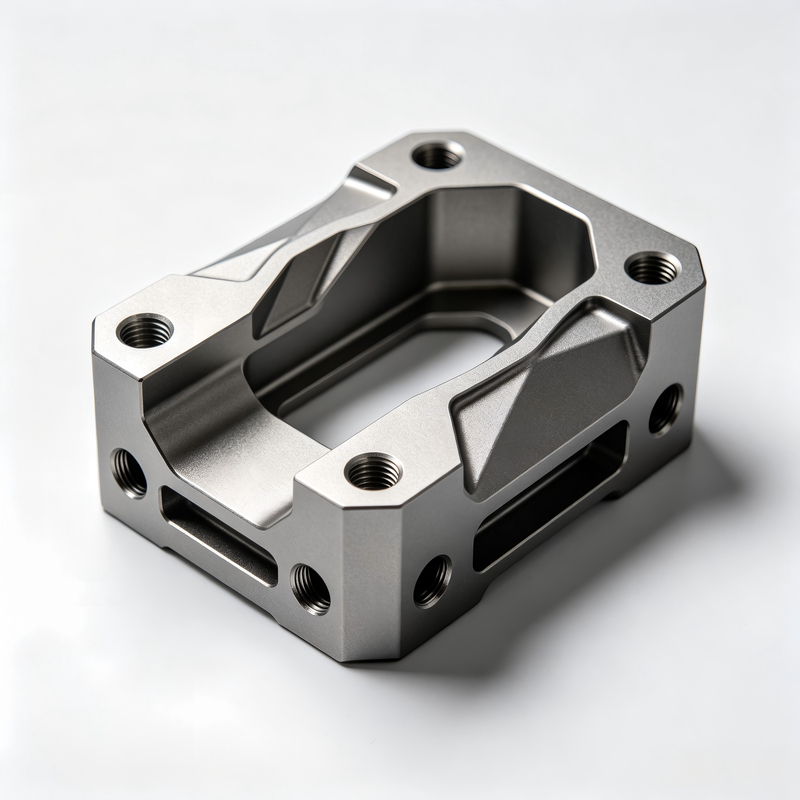

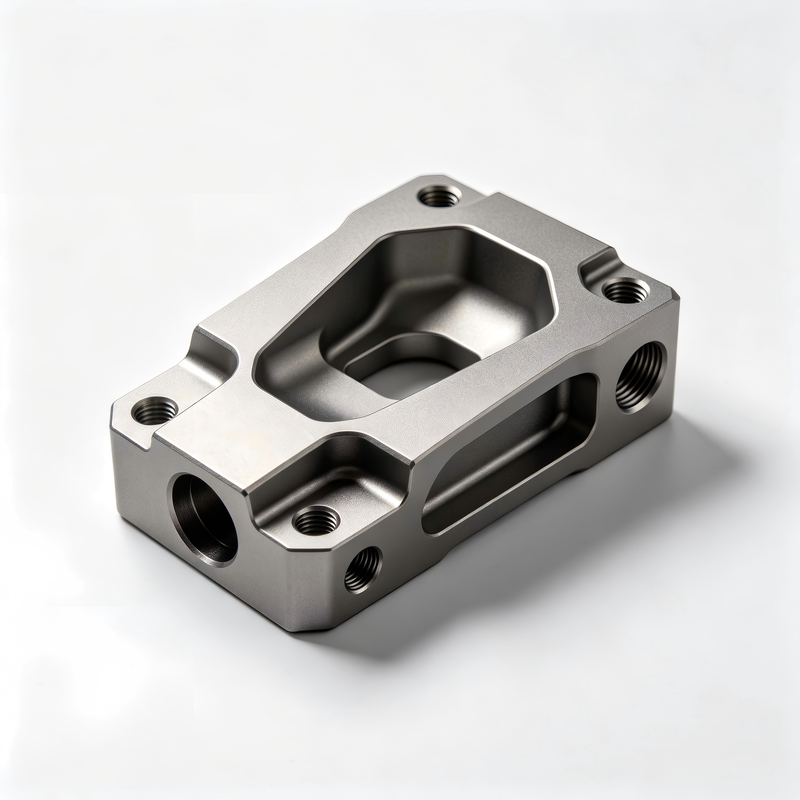

This precision component is a testament to advanced multi‑axis machining capabilities. Manufactured from aerospace‑grade 7075‑T6 aluminum alloy, the part features a highly intricate geometry that integrates compound curved surfaces, angled deep‑wall pockets, and slender reinforcing ribs – all realized in a single clamping operation on state‑of‑the‑art 5‑axis CNC machining centers. The result is a seamless, structurally optimized workpiece with zero mismatch or tool‑joint marks, delivering exceptional dimensional accuracy and surface integrity.

Base Material:7075‑T6 aluminum (UNS A97075), known for its outstanding strength‑to‑weight ratio, excellent fatigue resistance, and high stress‑corrosion cracking threshold – ideal for lightweight structural applications.

Surface Treatment: The component undergoes a uniform sandblasting process to eliminate any visible tool lines and create a homogeneous micro‑textured substrate, followed by clear (natural) anodizing per MIL‑A‑8625 Type II. This anodic layer enhances corrosion protection, increases surface hardness (up to 60 HRC equivalent), and preserves the metal’s natural silver‑grey matte appearance, which reduces glare and facilitates visual inspection.

• Edge Condition: All sharp corners and edges are precisely broken (≤0.1 mm chamfer or radius) to prevent stress risers and ensure safe handling, while maintaining the crisp, clean visual that reflects high‑end machining.

The part’s design pushes the limits of conventional 3‑axis or 4‑axis processes:

• Free‑form surfaces with continuously varying curvature, demanding simultaneous 5‑axis interpolation to maintain consistent tool engagement and surface finish.
• Deep cavities angled at up to 25° relative to the main axis, with depth‑to‑diameter ratios exceeding 4:1 – achieved using custom‑ground long‑reach end mills and adaptive trochoidal milling strategies.
• Thin‑wall ribs with a minimum wall thickness of just 1.2 mm, machined without distortion thanks to optimized cutting parameters and rigid workholding.
• No visible joint lines – because the entire geometry is completed in one setup, we eliminate positional errors and blending marks common in multi‑step processes, ensuring a truly monolithic appearance and superior structural continuity.

Every batch is subject to rigorous in‑process and final inspection:

• Dimensional verification using a CNC coordinate measuring machine (CMM) with a 0.001 mm resolution, accompanied by a full dimensional report.
• Surface finish measurement with a portable profilometer to confirm Ra and Rz values against customer drawings.
• Anodizing thickness test per ASTM B244 using eddy‑current gauges.
• Visual inspection under 10* magnifying lamps to detect any surface imperfections or handling marks.

All records are retained for full traceability, and we can supply first‑article inspection (FAI) reports in accordance with AS9102 standards upon request.

This component design is particularly suited for:

• Motorsport / Automotive – suspension uprights, gearbox components, and turbocharger housings that require high rigidity with complex ducting.
• General industrial– high‐performance pump impellers, valve bodies, and custom jigs for specialized manufacturing.

We do not limit ourselves to this exact design. Our 5‑axis machining centre is fully programmable to accommodate your 2D/3D CAD models (STEP, IGES, or SolidWorks files). We offer:

• Rapid prototyping – sample parts within15‑20 working days.
• Low‑to‑medium volume production (10 – 5000 units) with flexible lot sizes.
• Secondary operations – thread tapping, wire EDM, laser engraving, and assembly if needed.
• Packaging & logistics– anti‑corrosion VCI paper + foam‑lined cartons, worldwide shipping with insurance.

• Decades of experiencein complex multi‑axis milling.
• In‑house tool design and grinding – we optimise cutter geometry specifically for your material and feature set.
• Short lead times ,thanks to just‑in‑time production scheduling and a dedicated project manager for every order.
• Transparent communication – you receive weekly progress photos and measurement updates.

Upload your drawing or 3D model, and we will respond with a competitive price, lead time, and process proposal within 24 hours. All projects are handled with strict confidentiality.
